DJI Phantom 4 (PRO/ADV) Survey 3/2/1
Tilting Dual Camera Mount


NO CAMERA CLIPS INCLUDED: PLEASE ADD ABOVE

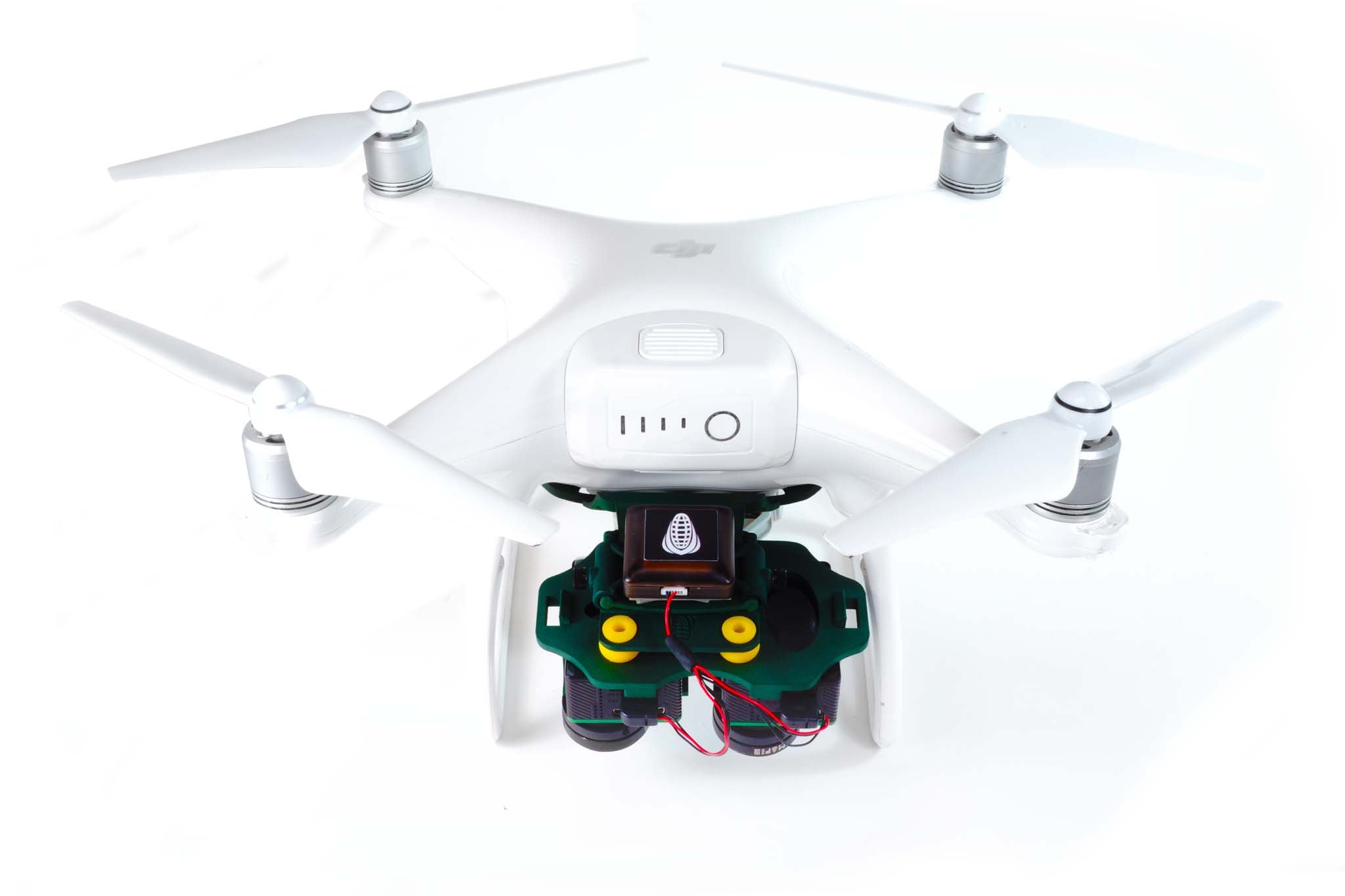

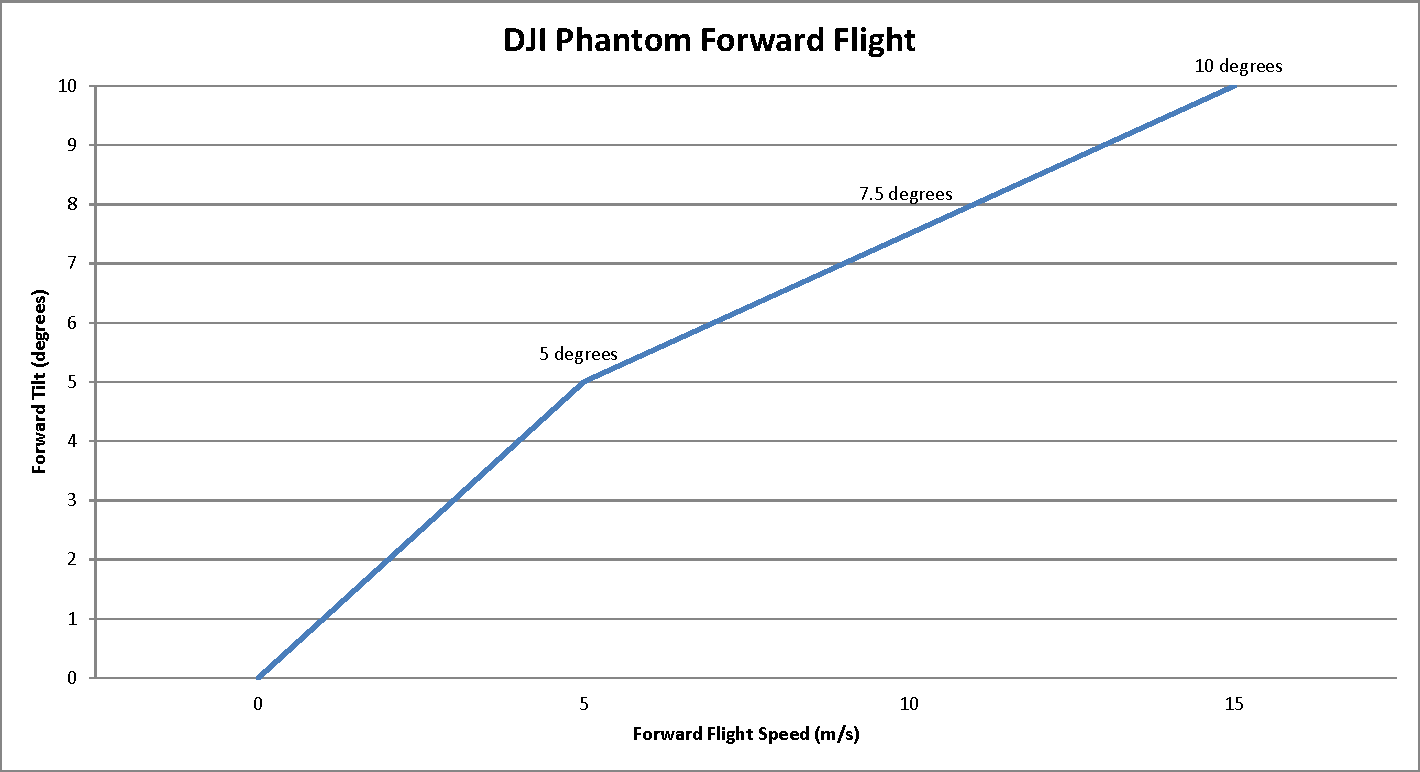

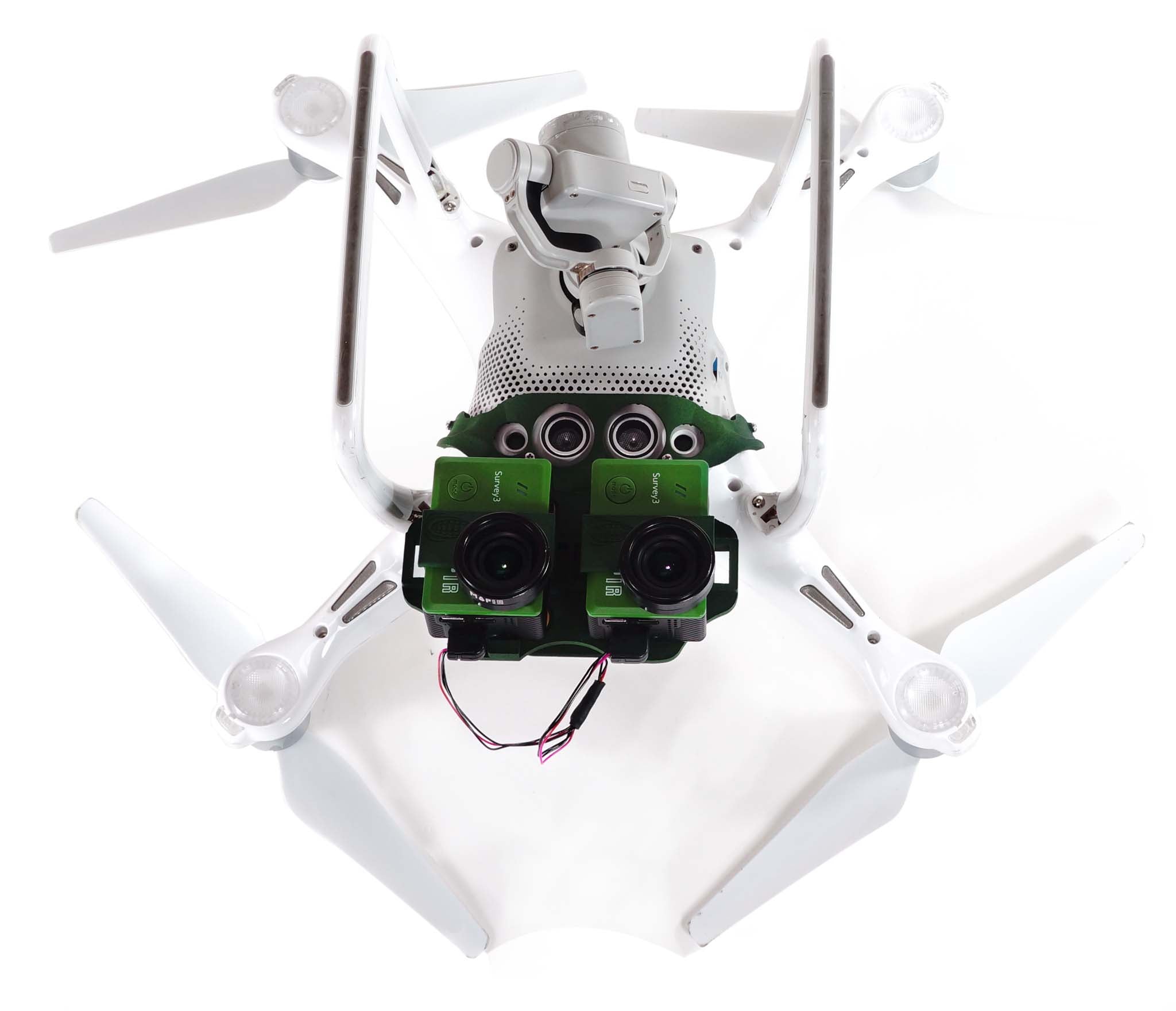

This mount allows you to easily attach up to two Survey3Survey2, Survey1 or GoPro Hero 4/3+/3 cameras to the Phantom 4 (PRO/ADV), Phantom 4 drones while still keeping the original drone camera installed. Using the two side black thumb screws you can adjust the camera's tilt angle from 0 to 10 degrees to account for the forward flying tilt. Each notch is equal to 2.5 degrees of tilt.

Supported Models: Phantom 4 Pro V2.0, Phantom 4 Pro, Phantom 4 Pro Obsidian, Phantom 4 RTK, Phantom 4 Multispectral, Phantom 4 Advanced, Phantom 4.

Included:

(1) Durable & lightweight plastic mounting plates

(4) Dampening balls

(1) Single Survey camera mounting plate

(4) M2 screws (replaces existing DJI screws)

Camera Mount Weight (not including camera clips and cameras): 32.82g

Peau Productions (MAPIR) is in no way liable for any damage caused to or by your drone. We have thoroughly tested this mount and when installed properly will not interfere with the normal operation of the drone.

Install Instructions:

Step 1: The mount will already come assembled. Simply unscrew the original DJI screws in the 4 locations marked below with a (not included) 1.5mm hex tool:

Step 2: Place the mount as shown and tighten the 4 screws included with the mount:

Step 3: If using the Survey3 cameras peel off the adhesive backing on the bottom of the GPS receiver, and press it such that the GPS receiver adheres to the center of the mount. You can use a (not included) plastic tie as shown below to provide a more secure attachment.



Step 4: Happy flying!
