DJI Mavic Pro MAPIR Survey3
Single Camera Mount

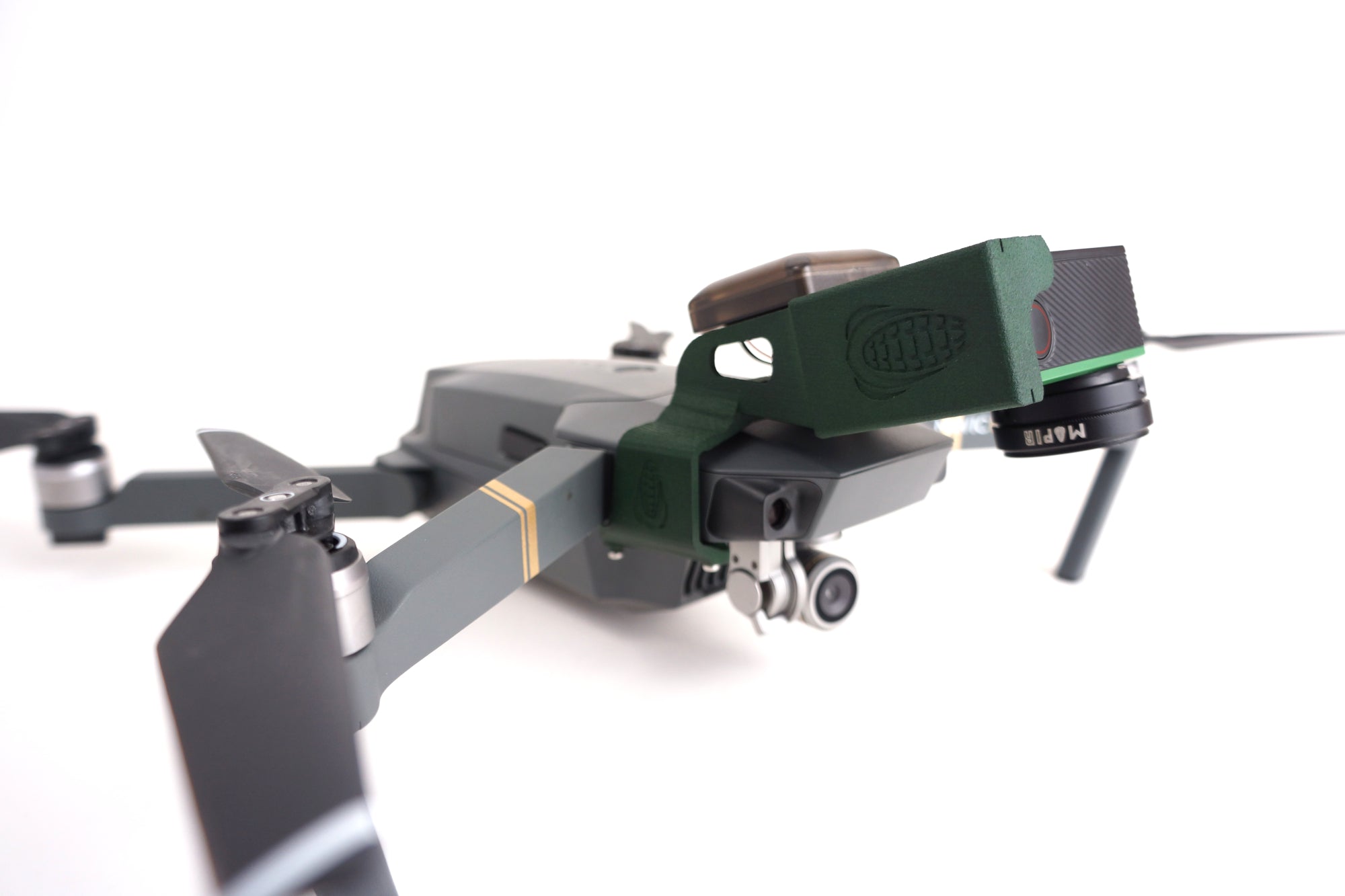

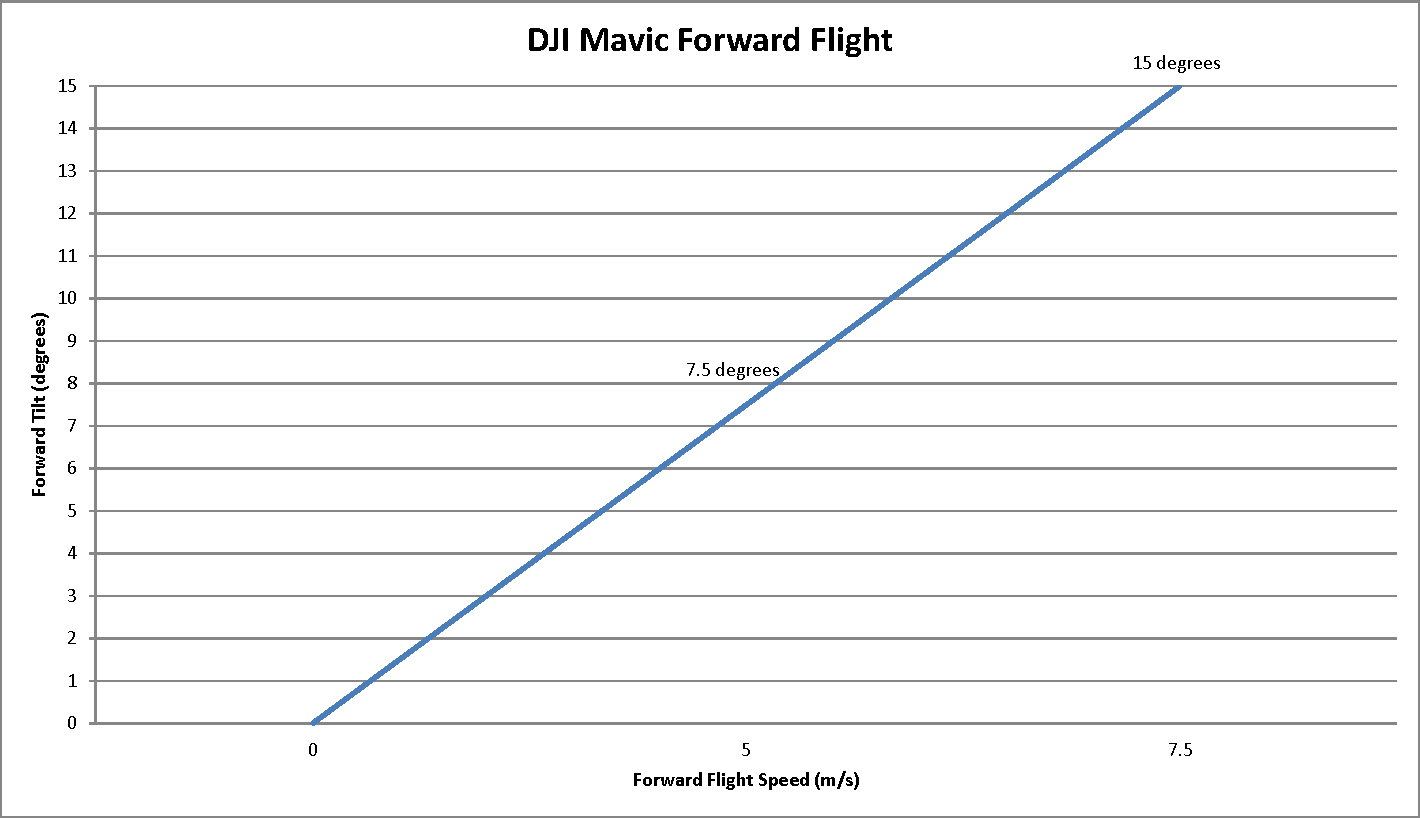

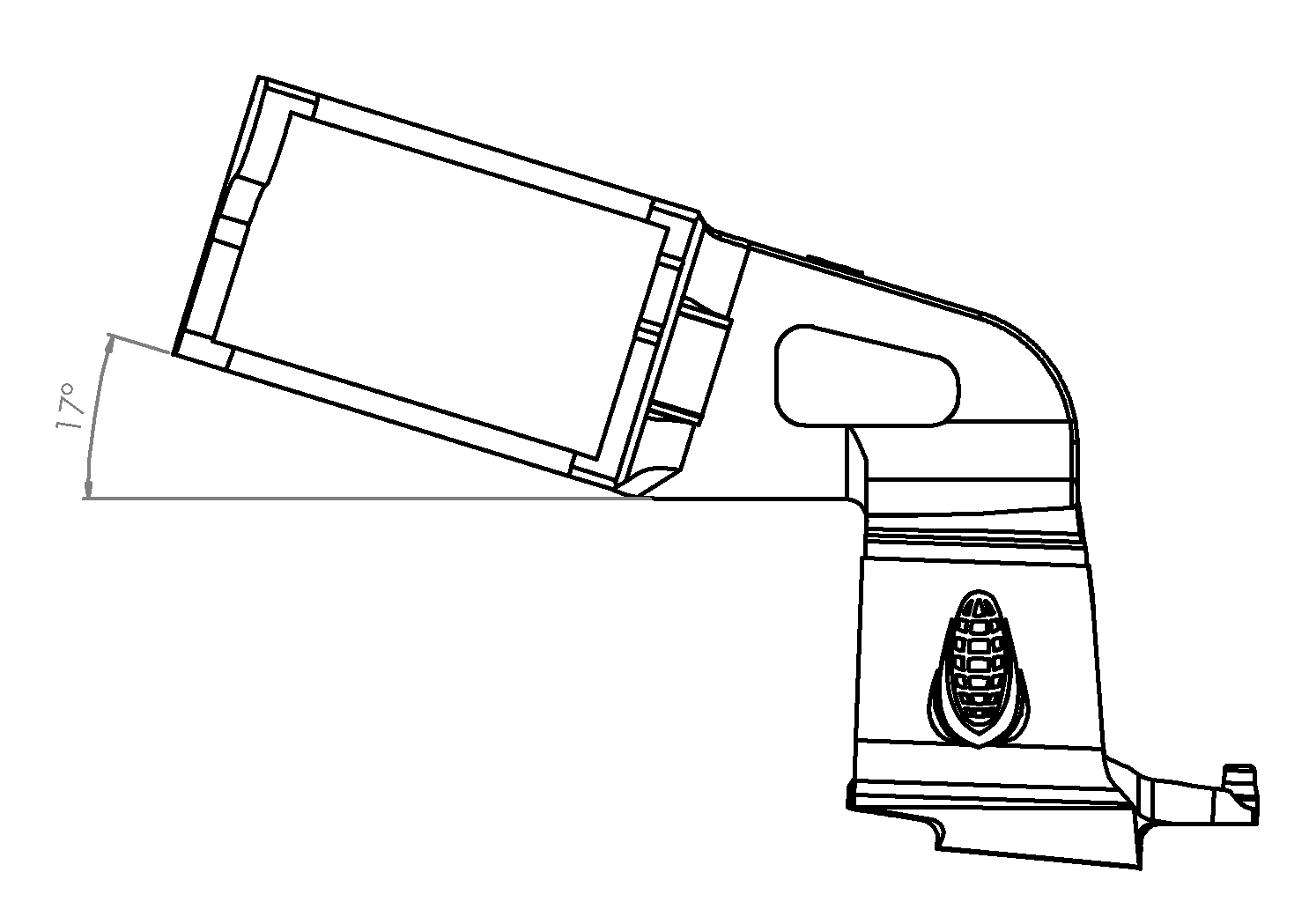

This mount allows you to easily attach a Survey3 camera securely to a DJI Mavic Pro drone while keeping the original drone camera installed (and unobstructed). The simple four screw installation makes it easy to remove and transport. The mount is at a fixed 17 degree tilt that will orient the camera nadir during max forward surveying flight speeds around 8m/s.

*Please note that we only recommend using the Advanced V2 GPS receiver with this mount due to the close proximity of the GPS plug on the camera to the front propeller.  The Standard GPS receiver may still work, but it is not as ideal as the Advanced V2 GPS.

Included:

(1) Durable & lightweight plastic mounting plate

(1) Black plastic bolt to attach camera to mount

(4) M2 screws (replaces existing DJI screws)

Weight (Camera+GPS+Mount): 123g



MAPIR is in no way liable for any damage caused to or by your drone. We have thoroughly tested this mount and when installed properly will not interfere with the normal operation of the drone. The sport speed settings of the DJI Mavic are not recommended when mount is in use.



Install Instructions:

Step 1: Unscrew the original DJI screws in the 4 locations marked below with a (not included) 1.5mm hex tool:

Step 2: Place the mount as shown and tighten the four screws included with the mount. The screw holes have pegs that will snap into place:

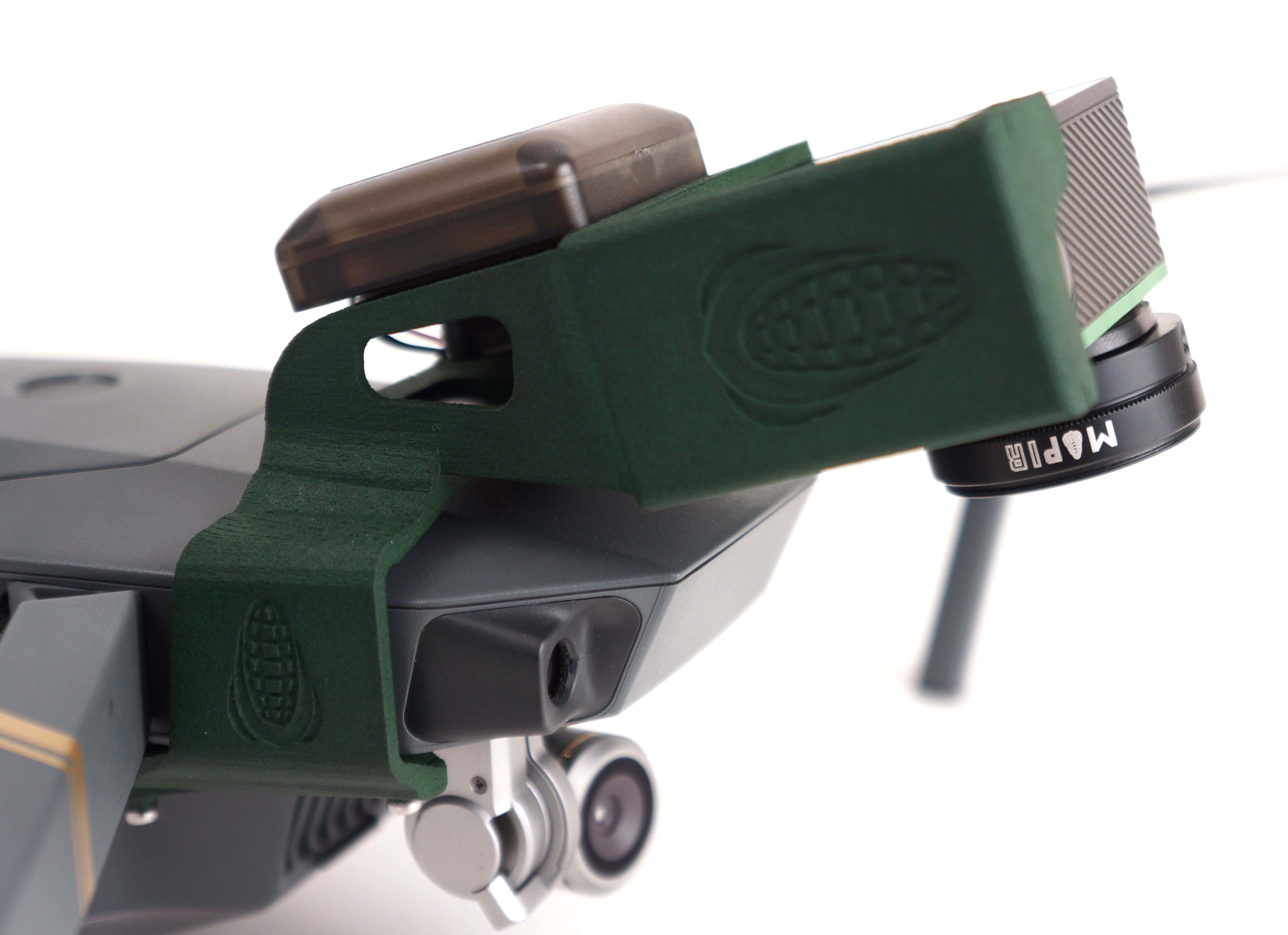

Step 3: Install the camera as shown below. Use the included black plastic camera bolt in the camera's tripod mounting hole to secure camera to mount. Feed the GPS receiver cable through the side hole, plug the USB cable into the side of the camera and peel off the adhesive backing on the bottom of the GPS receiver. Make sure to press it down securely such that the GPS receiver adheres to the center of the mount, as shown:





Step 4: Happy flying!
