DJI Matrice 100 MAPIR Survey 3/2/1
Dual Camera Mount


NO CAMERA CLIPS INCLUDED: PLEASE ADD ABOVE

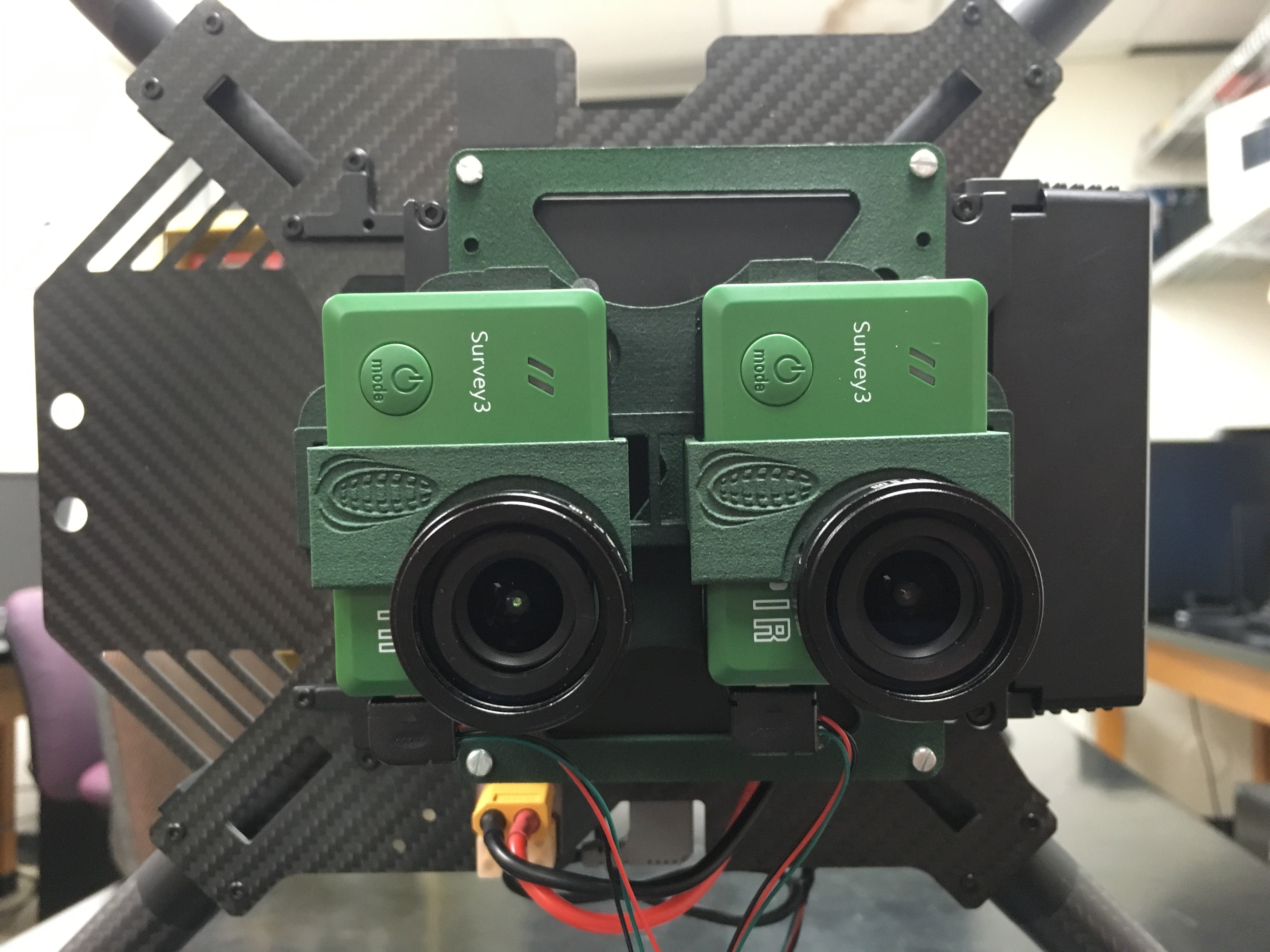

This mount allows you to easily attach two Survey3, Survey2, Survey1 or GoPro Hero 4/3+/3 cameras to the DJI Matrice 100 drone while still keeping the original drone camera installed. You can remove the dampening balls and rotate the camera plate 90 degrees if desired.

We recommend ordering the Survey3 camerass with the Advanced GPS receiver and with the longer 50cm (20in) dual cable.

No mounting hardware is included. You will need to supply 4 bolts of 2.5mm diameter or smaller and 4 nuts to secure the bolts through the mount and to the underside of the Matrice 100.

Included:

(1) Durable & lightweight plastic mounting plate

(4) Dampening balls

(1) Dual Survey camera mounting plate

Camera Mount Weight (not including camera clip(s), camera(s), GPS): 35g

MAPIR is in no way liable for any damage caused to or by your drone. We have thoroughly tested this mount and when installed properly will not interfere with the normal operation of the drone.





Install Instructions:

Attach the plate such that it lines up with the 4 screw holes on the bottom of the Matrice 100.
