DJI Inspire 1 MAPIR Survey 3/2/1
Tilting Single Camera Mount

NO CAMERA CLIPS INCLUDED: PLEASE ADD ABOVE



This mount allows you to easily attach a Survey3Survey2, Survey1 or GoPro Hero 4/3+/3 camera to the DJI Inspire1 drone while still keeping the original drone camera installed. Using the two side black thumb screws you can adjust the camera's tilt angle from 0 to 20 degrees. To carry 2 cameras please see the dual mount here.

Included:

(1) Durable & lightweight plastic mounting plates

(4) Dampening balls

(2) Thumb Screws

(1) Single Survey camera mounting plate

Camera Mount Weight (not including camera clips and cameras): 41.85g

Peau Productions (MAPIR) is in no way liable for any damage caused to or by your drone. We have thoroughly tested this mount and when installed properly will not interfere with the normal operation of the drone.

Install Instructions:

Step 1: The mount will already come assembled. Simply unscrew the original DJI screws in the 4 locations marked in red below with a (not included) hex/allen tool:

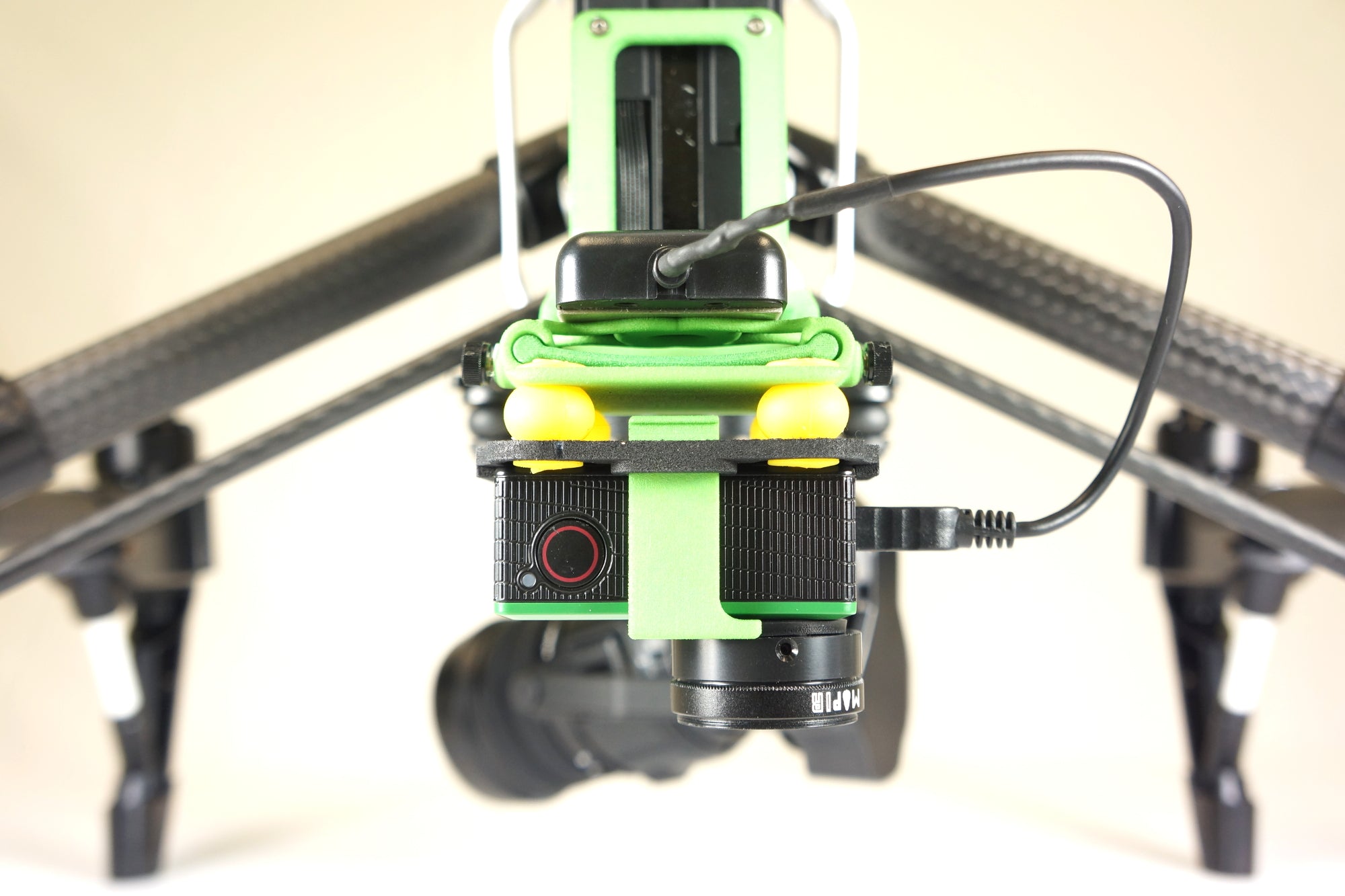

Step 2: Place the mount as shown and tighten the 4 screws you just removed from the drone:

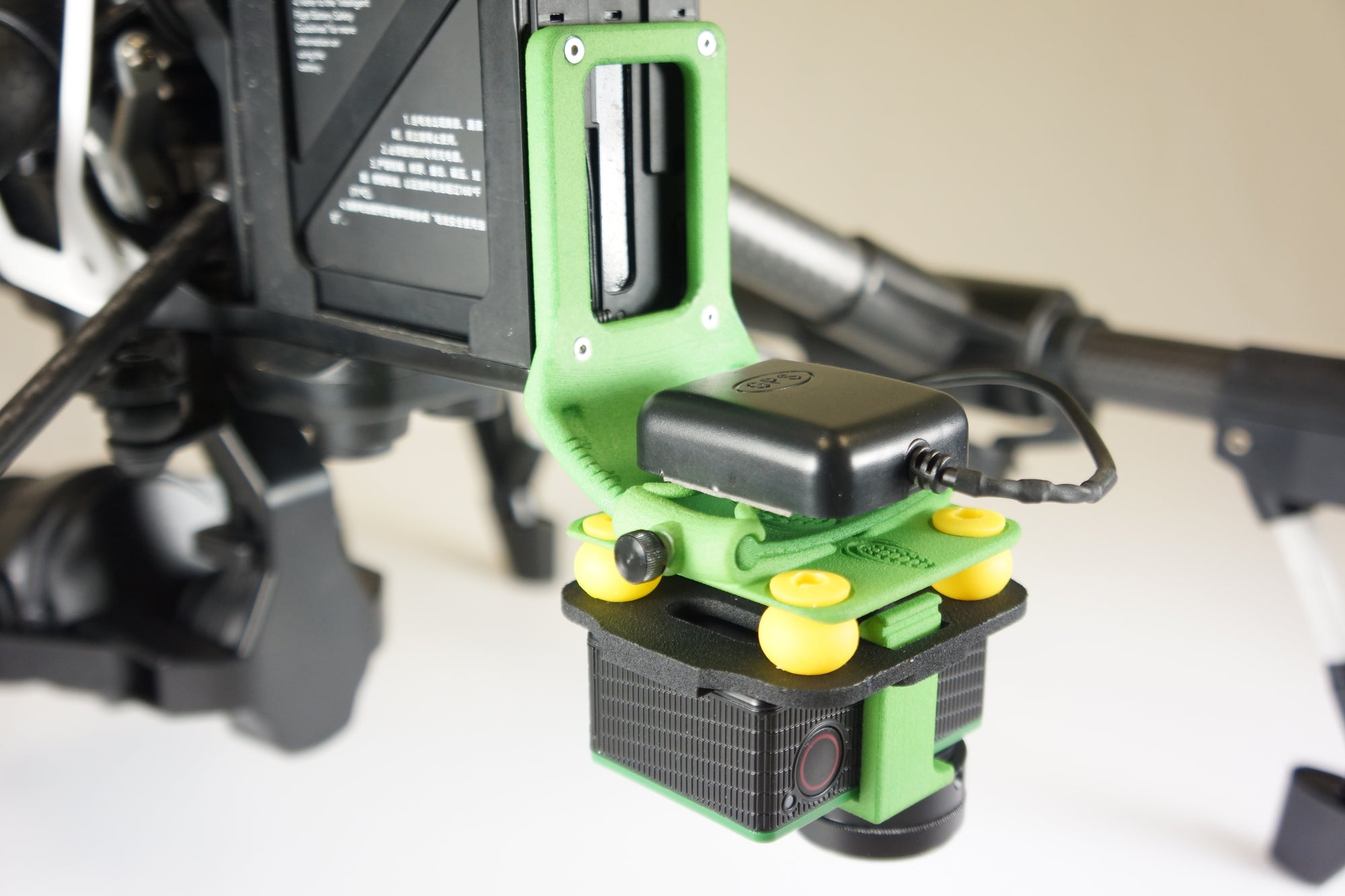

Step 3: Install the camera with a camera clip (not included). If using the Survey3 cameras, peel off the adhesive backing on the bottom of the GPS receiver, and press it such that the GPS receiver adheres to the top center of the mount.

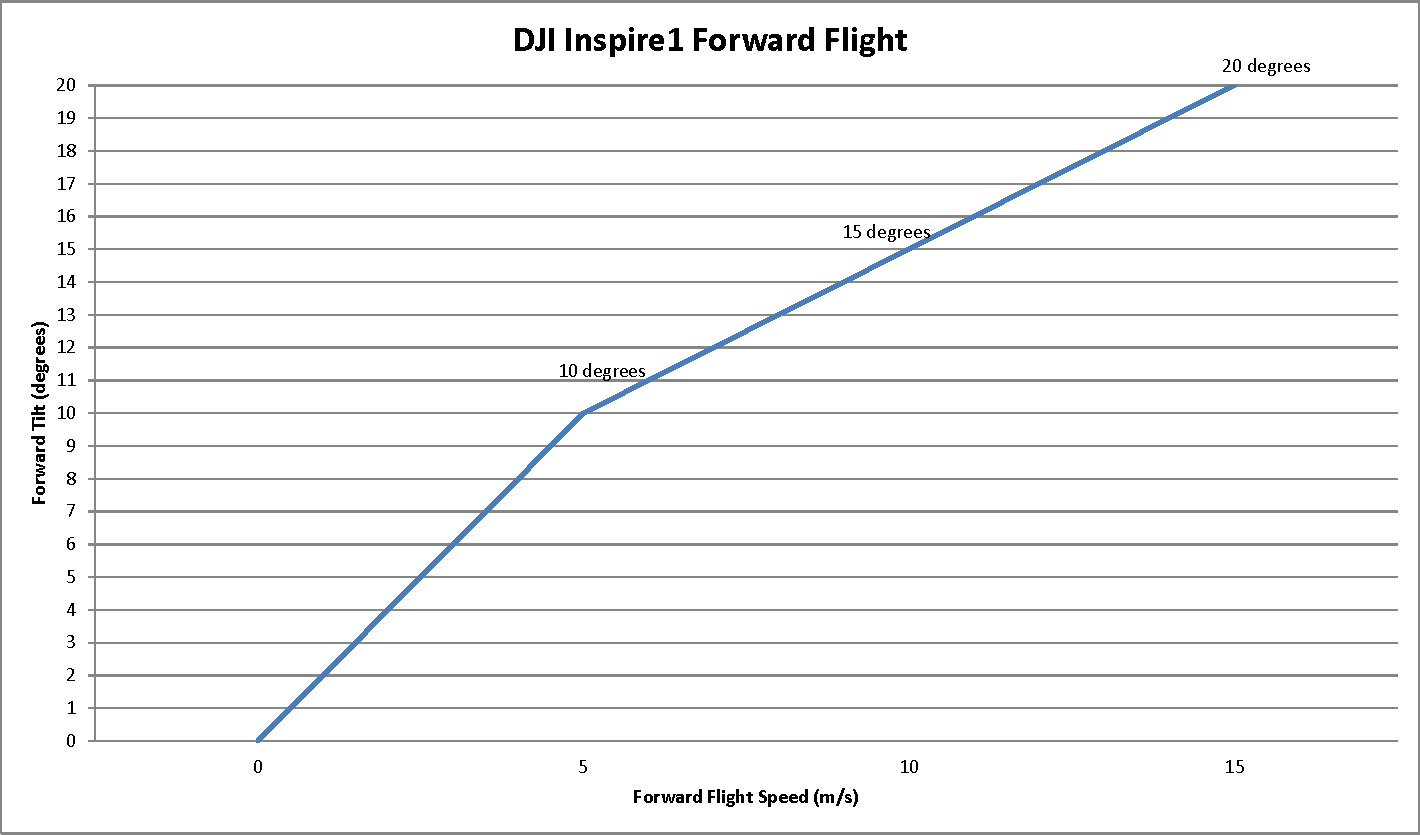

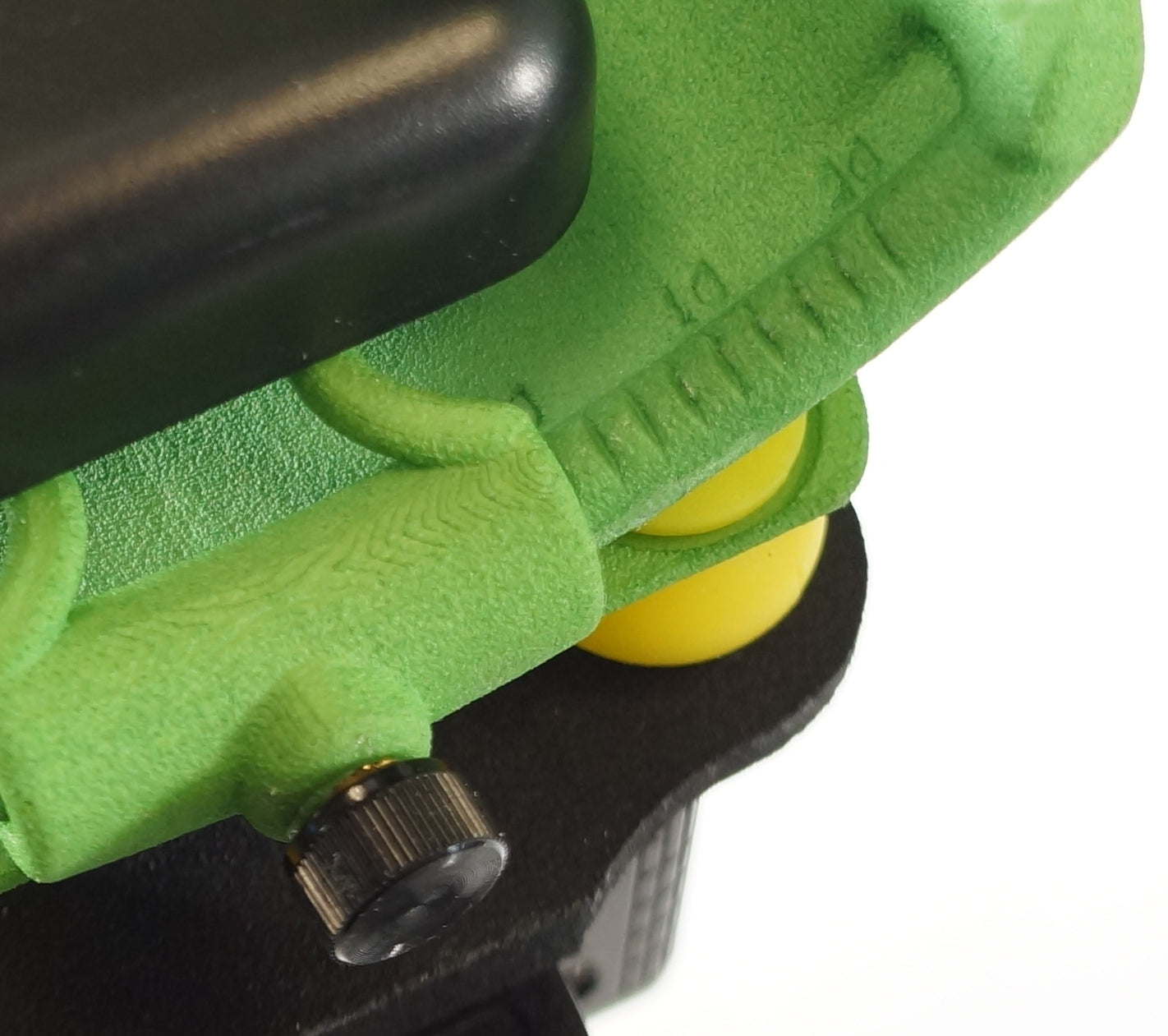

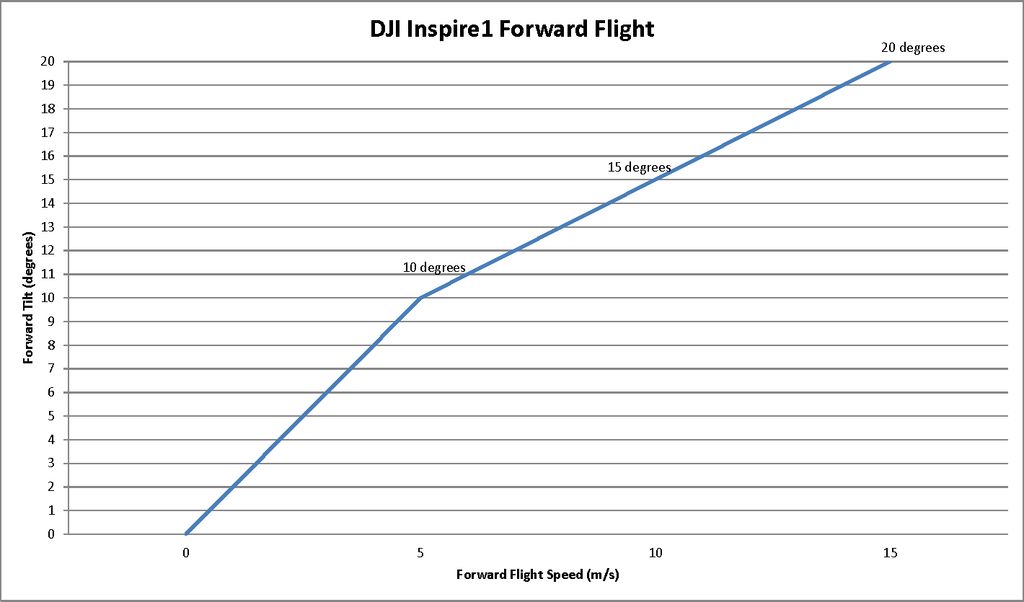

Step 4: Unscrew the black side thumb knobs and slide the camera mount to the desired tilt location. Align the edge of the camera mount with the notch in the drone mount (the photo below shows a 0 degree tilt location). There are notches every 2.5 degrees from 0 to 20 degrees. Refer to the chart at the bottom to tilt according to your expected flight speed.

Step 5: Happy flying!
