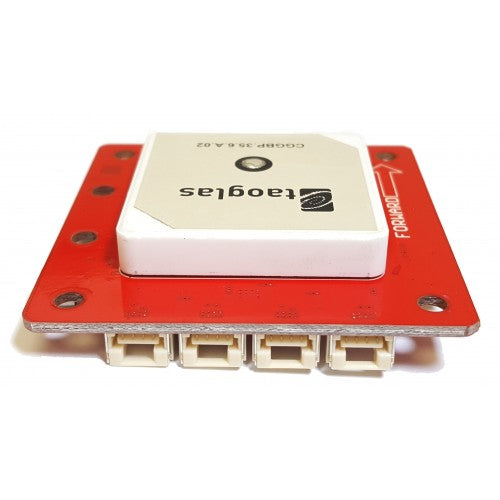

Zubax GNSS 2

  • Description
  • Technical Specifications
  • The Zubax GNSS 2 receiver is a very high performance GPS + GLONASS concurrent receiver with integrated Barometer and Compass. It is an open-source receiver meant for users that have sensitive position requirements (commercial users; use in semi-urban canopy environments; use in situations where the least amount of GPS drift is desired). The Zubax GNSS 2 receiver is designed for a professional user that requires RF shielding for use in systems with nearby electronics.


    Technical Specifications:

     •               Weight (without connected peripherals): 43 grams

     •               Size: 55 x 55 x 14 millimeters

     •               Interface: Double-redundant UAVCAN (this version has the JST GH Connector type)

     •               GPS Module: U-blox MAX-M8Q

     •               Onboard components: Barometric Pressure Sensor, Super Capacitor, 3-Axis Honeywell Magnetometer

     •               Channels: 72

     •               Satellite Systems: GPS / QZSSL1, GLONASS L10F, BeiDou B1. Additionally uses SBAS: WAAS, EGNOS, MSAS. This GNSS receiver has the capacity to achieve  world wide coverage.

     •               Navigation Sensitivity: -167dBm

     •               Horizontal Position Accuracy: 2 Meters CEP (or better)

     •               Vertical Position Accuracy: 10 cm

     •               Acquisition Time (seconds): Cold – 26; Aided Start – 2; Reacquisition – 1 (note that the on-board supercapacitor enables such as fast start time)
