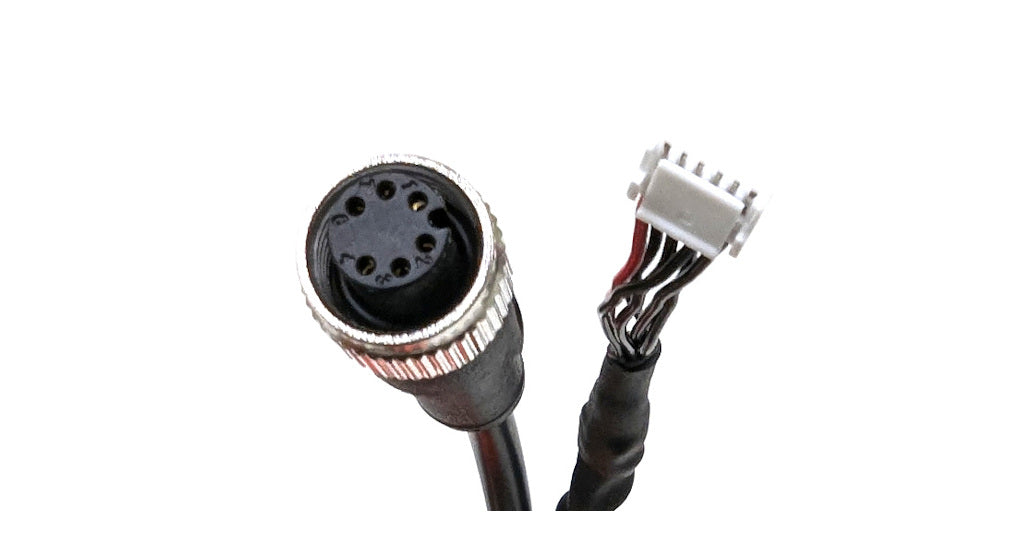

Use this m12 female (F) cable to connect directly to our DAQ-A. Power must be supplied to the DAQ-A at its side USB micro port. This is known as a "Power to Camera" DAQ-A cable.
All Survey3 PRO cameras contain a 6 position (pin) m12 industrial IP67 male (M) plug. The port on the camera is male (M) and the connecting cable is female (F).
The m12 pin assignment is as follows:
m12 Pin Position
m12 Wire Color
DAQ-A Pin Position
Signal Name
1
Brown
1
Power 5V
2
White
2
Ground (Power)
3
Blue
3
GNSS (GPS) RX
4
Black
4
Trigger (PWM)
6
Grey
5
Exposure (Strobe)
7
Pink
6
Ground (Signal)
Here is a drawing showing pin position of the camera's m12 male (M) port:
