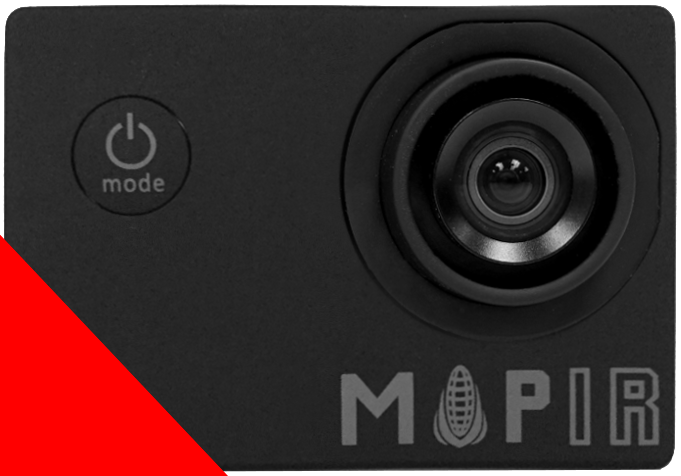

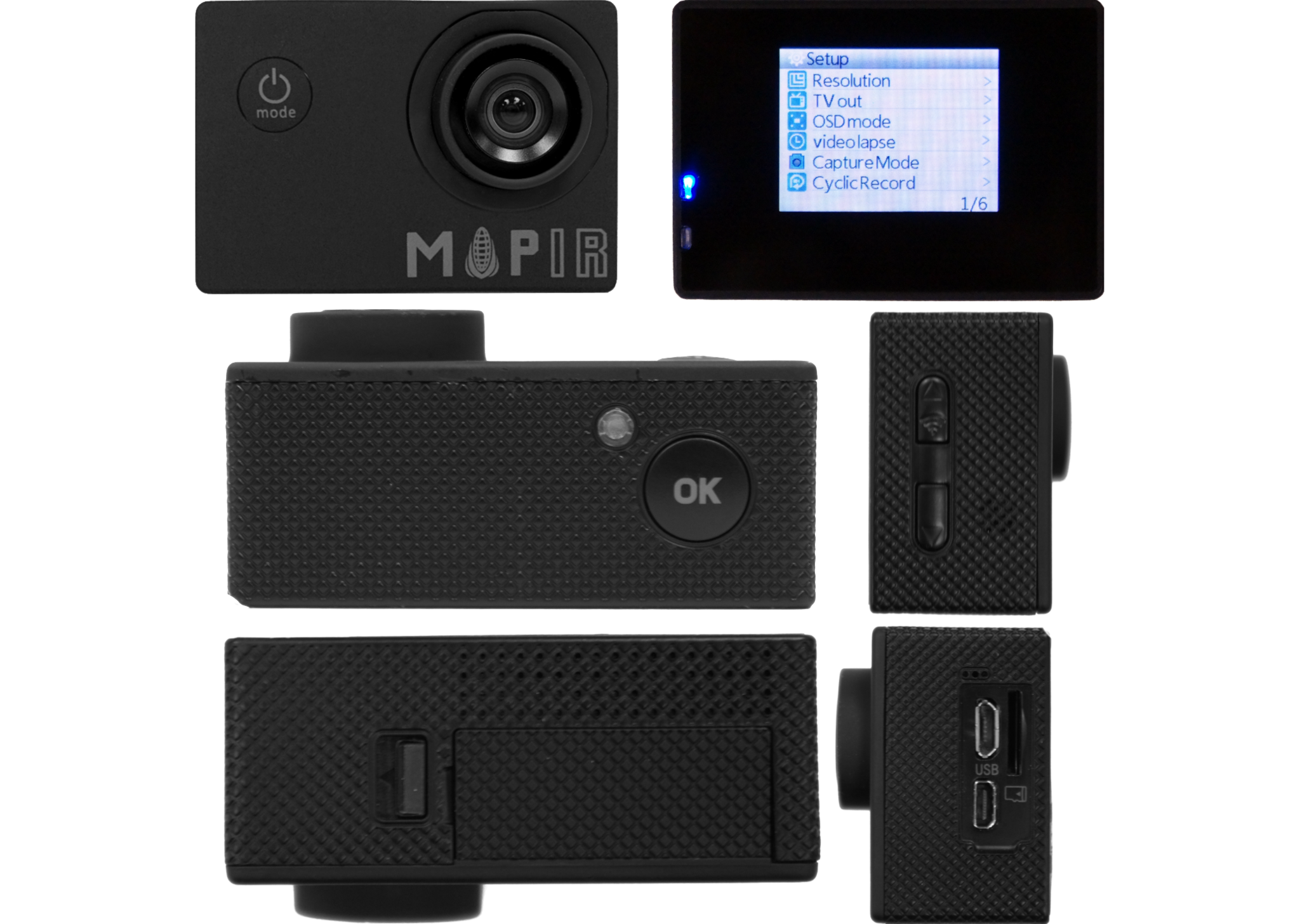

Survey1 Camera - Red Light

This Item Is No Longer Available - Please See the New Survey3 Cameras Instead

This camera sees only Red Light, which is commonly used with an Infrared Light (IR) camera for assessing plant health (NDVI).

Camera captures a photo every 3 seconds. For best results, we recommend a survey overlap of at least 85% front-lap and 70% side-lap and a maximum 5mph (8kmh) speed for every 65ft (20m) of altitude (AGL).

Product Specifications:

Image Resolution 12 MegaPixel (4,032 x 3,024 px)
Lens Optics 60° HFOV (31mm), f/2.8 Aperture, -0.85% Extreme Low Distortion (Non-Fisheye) Glass Lens
Ground Sample Distance (GSD) 6.83 cm/px at 120 m (~400 ft) AGL
Capture Speed 1 Picture Every 3 Seconds (24 bit JPG)
Battery Removable Li-ion (900mAh) [Not Required When USB Powered], ≈2,500 Photos Per Charge
Weight 47g (1.7 oz) [Without Battery], 64g (2.3 oz) [With Battery]
Dimensions 59.2 x 41.0 x 29.8mm (Length x Height x Depth)
Memory Storage Micro SD (Up To 32GB Card) [32GB Card ≈ 8,400 Pictures (Fine)]
White Balance Auto* / Daylight / Cloudy / Tungsten / Fluorescent
ISO Auto* / 100 / 200 / 400
Exposure +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0
Quality Fine* / Normal / Economy
Sharpness Strong* / Normal / Soft
LCD 1.5” Color LCD Screen
Video Out HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)
TV Mode NTSC / PAL
Power USB (Micro-A Cable Included, Optional Micro USB FPV Cable)
OSD Language English*, French, Spanish, German, Italian, Chinese, Russian, Japanese, Korean
OSD Display ON* / OFF
Wifi Wireless Mobile Android & iOS Control Viewing Application
Date Stamp ON / OFF*
Sound ON* / OFF
Auto Power Off ON / OFF*
Screensaver ON / OFF*
Vertical Rotate ON / OFF*
Included Accessories USB Charge Cable, USB Wall Charger, Waterproof Case + Mounts, Cleaning Cloth, Manual
* = Default Setting
