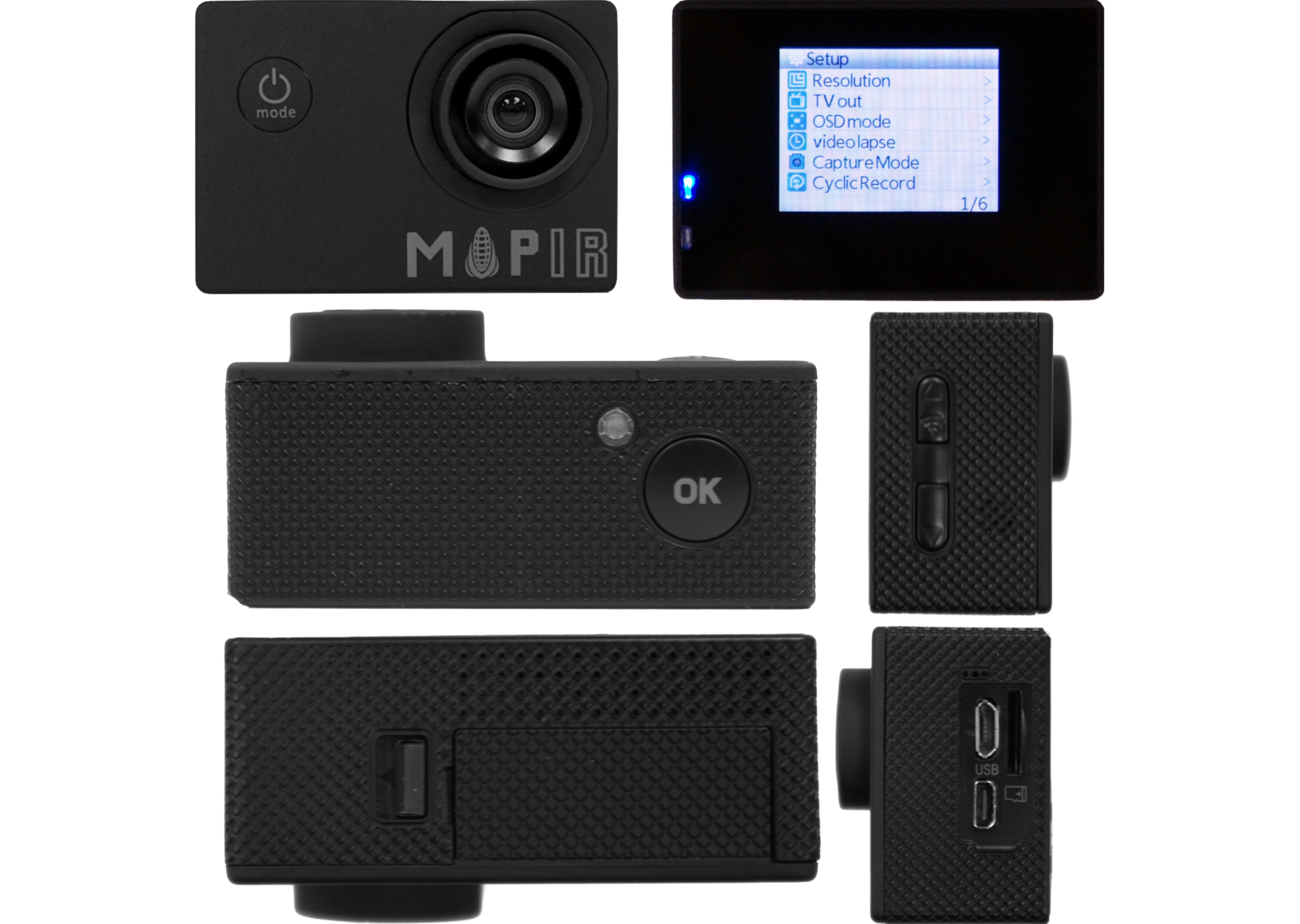

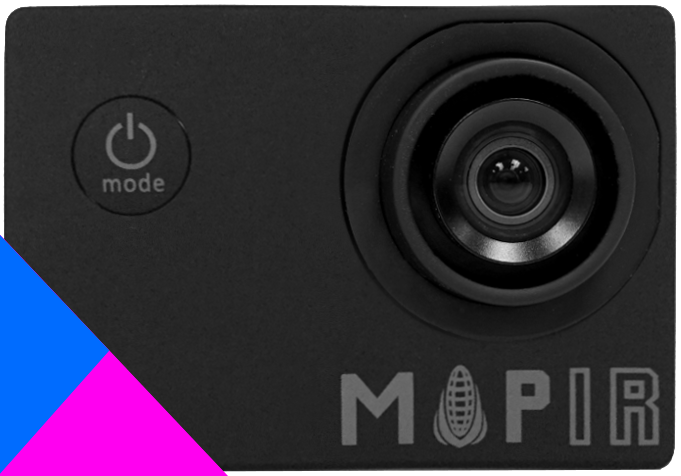

Survey1 Camera - NDVI Blue+NIR

This Item Is No Longer Available - Please See the New Survey2 Cameras Instead

This camera sees both Blue Light and Infrared (IR) Light with no cross talk between bands. It is most often used as a single camera NDVI solution for assessing where plants are located in agricultural surveying. By processing the resulting image, you can assess the locations of varying levels of vegetation health.

Camera captures a photo every 3 seconds. For best results, we recommend a survey overlap of at least 85% front-lap and 70% side-lap and a maximum 5mph (8kmh) speed for every 65ft (20m) of altitude (AGL).

While the results from this dual-band camera clearly show where vegetation is located (or not located), this camera does not show as much contrast as an Infrared and Red Light dual camera setup.

Example Media From This Camera (Left) & Processed for NDVI Gradient (Right)

Included Accessories:

Product Specifications:

Image Resolution 12 MegaPixel (4,032 x 3,024 px)
Lens Optics 60° HFOV (31mm), f/2.8 Aperture, -0.85% Extreme Low Distortion (Non-Fisheye) Glass Lens
Ground Sample Distance (GSD) 6.83 cm/px at 120 m (~400 ft) AGL
Capture Speed 1 Picture Every 3 Seconds (24 bit JPG)
Battery Removable Li-ion (900mAh) [Not Required When USB Powered], ≈2,500 Photos Per Charge
Weight 47g (1.7 oz) [Without Battery], 64g (2.3 oz) [With Battery]
Dimensions 59.2 x 41.0 x 29.8mm (Length x Height x Depth)
Memory Storage Micro SD (Up To 32GB Card) [32GB Card ≈ 8,400 Pictures (Fine)]
White Balance Auto* / Daylight / Cloudy / Tungsten / Fluorescent
ISO Auto* / 100 / 200 / 400
Exposure +2.0 / +1.67 / +1.33 / +1.0 / +0.67 / +0.33 / +0.0* / -0.33 / -0.67 / -1.0 / -1.33 / -1.67 / -2.0
Quality Fine* / Normal / Economy
Sharpness Strong* / Normal / Soft
LCD 1.5” Color LCD Screen
Video Out HD 1080p (HDMI Micro), SD 480p (Optional USB FPV Cable)
Power USB (Micro-A Cable Included, Optional Micro USB FPV Cable)
OSD Language English*, French, Spanish, German, Italian, Chinese, Russian, Japanese, Korean
OSD Display ON* / OFF
Wifi Wireless Mobile Android & iOS Control Viewing Application
Date Stamp ON / OFF*
Sound ON* / OFF
Auto Power Off ON / OFF*
Screensaver ON / OFF*
Vertical Rotate ON / OFF*
Included Accessories USB Charge Cable, USB Wall Charger, Waterproof Case + Mounts, Cleaning Cloth, Manual
* = Default Setting
