DAQ-A Mount Holes

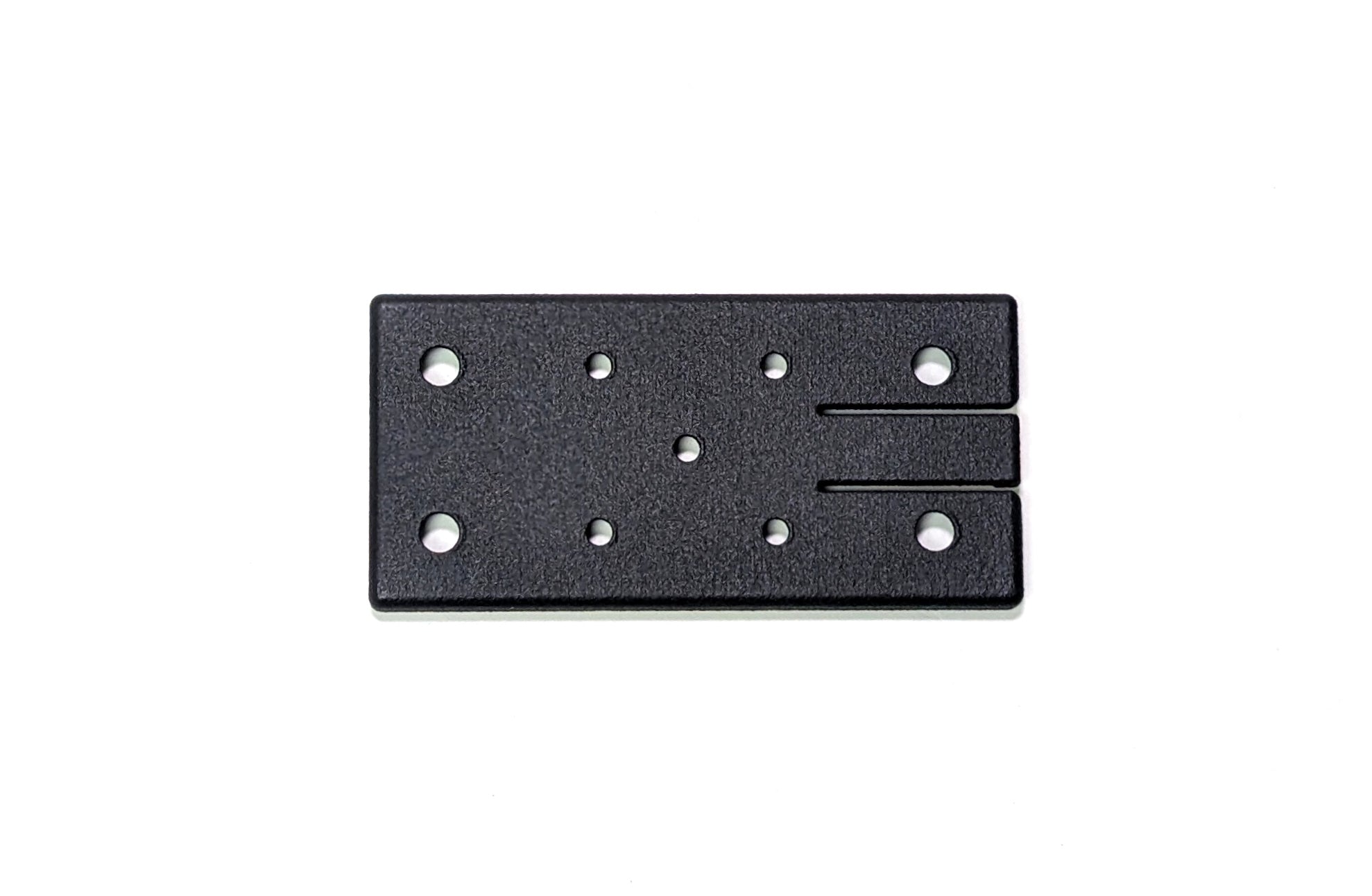

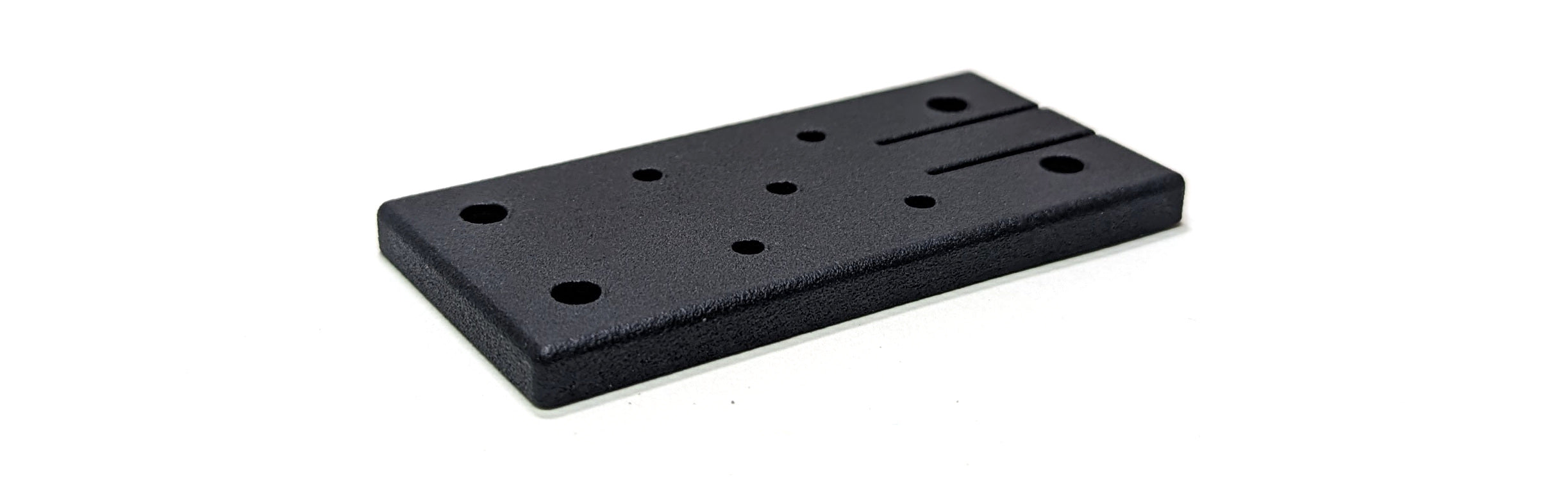

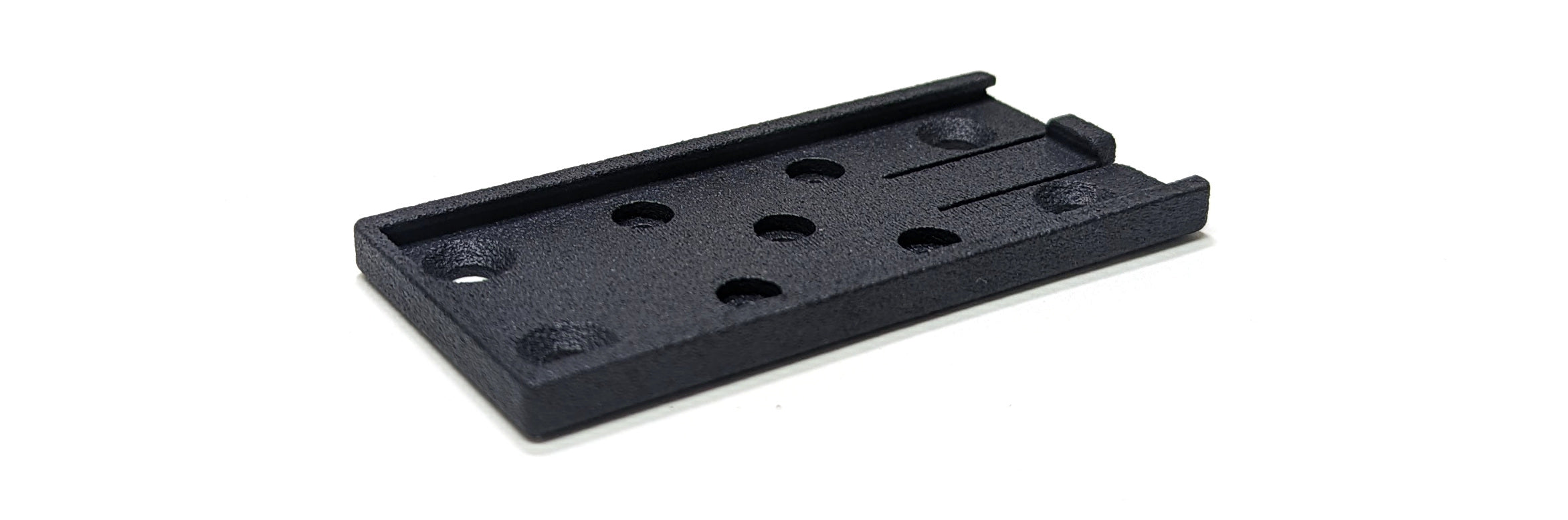

Use this DAQ-A Mount Holes to attach the DAQ-A product line to any compatible surface.

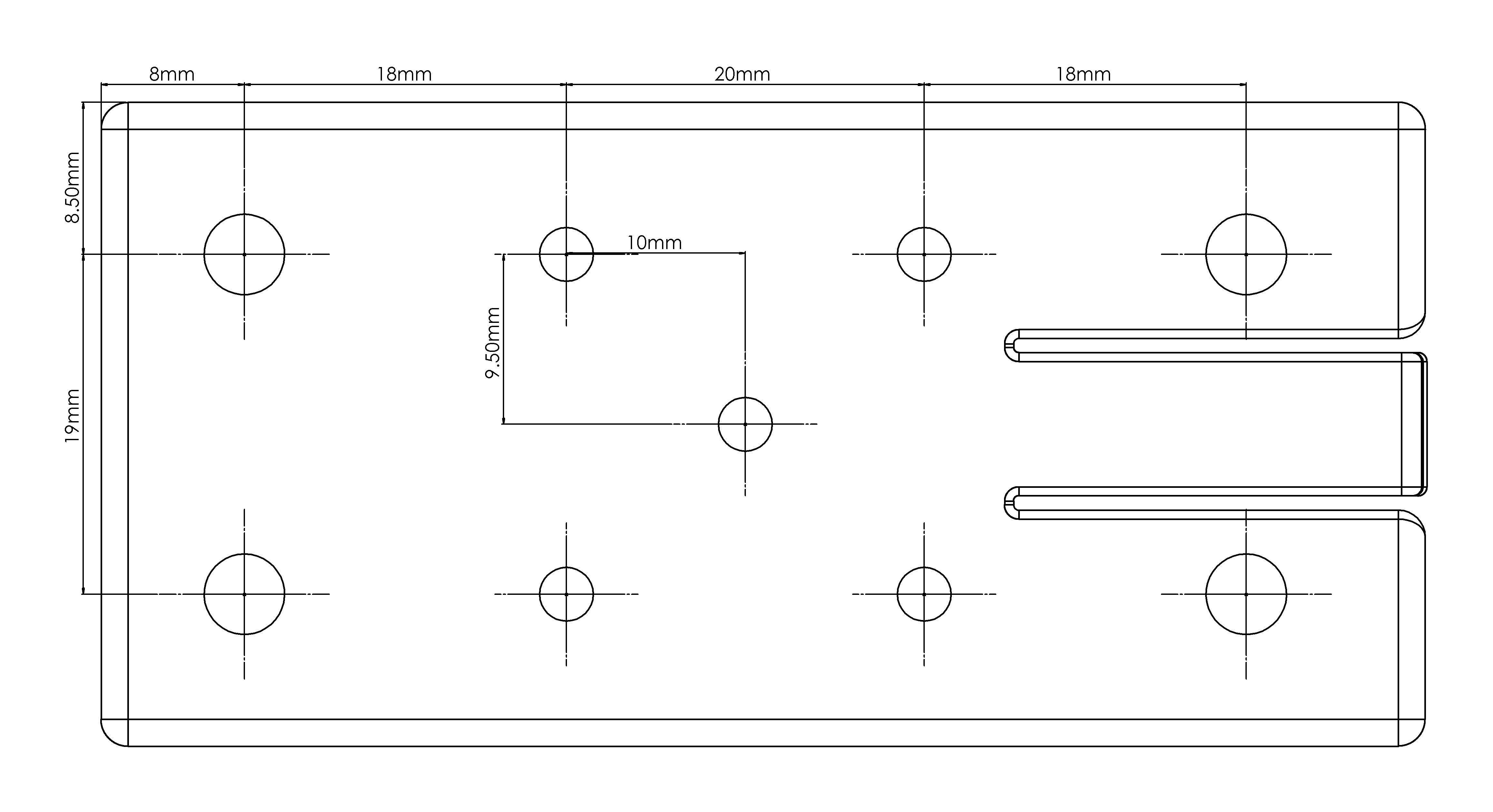

There are 4 larger countersunk holes as well as 5 smaller countersunk holes.


Large Holes Head Diameter: 8.5mm

Large Holes Angle: 41 degrees

Larger Holes Head Height Supported: 1.7mm

Larger Hole Thread Diameter Clearance: 4.5mm

Smaller Holes Diameter: 6.0mm

 Smaller Holes Inset Head Height Supported: 1.8mm

Smaller Hole Thread Diameter Clearance: 3.0mm
