Main Features:

Durable plastic housing protects all 12 models of Survey3W and Survey3N cameras
Waterproof IP67 protection: fully submersible in liquids to 1 meter depth for 30 minutes
Industrial IP67 6 pin circular m12 (male) cable port with power and data signals
External IP67 micro SD memory card port (supports up to 512GB capacity card)
Integrated Advanced V2 GNSS (uBlox MAX-M10S) GPS Receiver
Removable front glass lens cap provides access to (optional) manual lens focusing wheel
Multiple 1/4-20 tripod threads: 1 bottom, 1 on right side and 1 on left side
User-removable rear door allows access to camera's rear LCD touchscreen
2 internal switches: power (on/off) and GNSS source selection (internal/external)
Internal desiccant packet to absorb extra moisture

*All IP67 ratings for the Survey3 PRO assume seals are free of debris and mated properly. Failure to properly reinstall the Lens Cover, Rear Door and Memory Card Port Cap may allow moisture to enter and cause damage.

Exterior Overview:

Label	Name	Description
A	GNSS (GPS) Receiver	Advanced V2 GNSS (uBlox MAX-M10S)
B	Lens Cover	Hydrophobic glass lens protector. Twist to unlock.
C	Rear Door Latches	Holds silicone door gasket sealed during water immersion.
D	Lens Focus Wheel	When the Lens Cover is removed you can easily turn the lens wheel to adjust the focus distance. [Optional Accessory]
E	Tripod Screw Threads	1/4-20 mounting threads
F	Tripod Screw Threads	1/4-20 mounting threads
G	6 pin m12 (Male) Power + Data Port	PWR, GND, GNSS, TRIG, EXP, GND
H	Tripod Screw Threads	1/4-20 mounting threads
J	Memory Card Port	Micro SD memory card (up to 512GB)
K	Survey3 Camera	Supports all 12 Survey3W and Survey3N models
L	Status LED	Conveniently check camera status
M	Power Switch	X = OFF, O = ON
N	GNSS Source Switch	Down = External GNSS, Up = Internal GNSS
O	Rear Door	Hinged 180 degree rear door is easily removed
P	Rear Gasket	Thick silicone sealing gasket

Interior Overview:

Label	Name	Description
A	Power Switch Off (X)	Disconnects external power connection
B	Power Switch On (O)	Connects external power connection
C	Status LED	Conveniently check camera status
D	Capture Mode	Photo, Video, Media Review
E	Shutter Speed	Camera exposure duration
F	Photo Count	Number of images available to capture
G	Battery Charge	Battery meter, 4 levels: 25%, 50%, 75%, 100%
H	Capture Button	Click to capture an image
J	GNSS Source Switch	Down = External GNSS
K	GNSS Source Switch	Up = Internal GNSS
L	GNSS Status	GNSS Status
M	Switch Door Tab	Pull tab up and out to open door
N	Camera Pull Tab	Pull tab to carefully remove camera from housing, unplugging cables as needed. Door must be removed first.
O	Camera Settings	Adjust main camera settings
P	Media Information	Shows media resolution, ratio, framerate, etc
Q	Mode Settings	Adjust mode (photo) settings

Included Components:

Survey3 PRO Housing (includes installed Advanced V2 GNSS)
Default Fixed Focus Lens Surround Insert
Desiccant Packet

Survey3 PRO Cable Options:

All Survey3 PRO cameras contain a 6 position (pin) m12 industrial IP67 male (M) plug. The port on the camera is male (M) and the connecting cable is female (F). The Survey3 PRO is designed to be connected to external power, it is not intended to be used on its own.

We offer a few variations of Survey3 PRO cables to complement your configuration:

m12(F) to DAQ-A

Use this m12 female (F) cable to connect directly to our DAQ-A. Power must be supplied to the DAQ-A at its side USB micro port. This is known as a "Power to Camera" DAQ-A cable.

m12(F) to USB (PWR) + TRIG + EXP

Use this m12 female (F) cable to connect to USB (A) power and standard servo PWM trigger and relay exposure pulse connections. The GNSS (GPS) wire is available and does not have a connector installed.

m12(F) to Wires

Use this m12 female (F) cable to make your own custom cables.

m12(F) to m12(M)

Use this m12 female (F) to m12 male (M) cable to connect to other pin compatible m12 systems.

Survey3 PRO Specifications:

Dimensions	110 x 54 x 96 mm, 4.3 x 2.1 x 3.8 in (length x width x height)
Weight	287g, 0.63lbs
Waterproof Rating	IP67 (rainproof, submersible to 1 meter for 30 minutes)
Cable Port	m12 (Male) 6pin - A Code
GNSS (GPS)	Advanced V2 GNSS (uBlox MAX-M10S)
Power Input	5.2V 0.8A (external power connection required, cable not included)

Survey3 Camera Installation Instructions:

If your Survey3 camera has the Manual Lens Focus Wheel installed then remove the default lens surround spacer by rotating it counterclockwise and pulling it out:

To install the (optional) desiccant packet pull the shelf down and push the packet into the cavity. You can route the GNSS (GPS) wires under the back of the shelf to help get them out of the way.

Plug the cables from the Survey3 PRO housing into the camera. The USB with the green wire is the GNSS (GPS) plug.

Tilt the camera down to clear the top lip, notch the camera pull tab into the slot on the bottom and push it into the housing. As you push it in, make sure no wires are pulled inward.

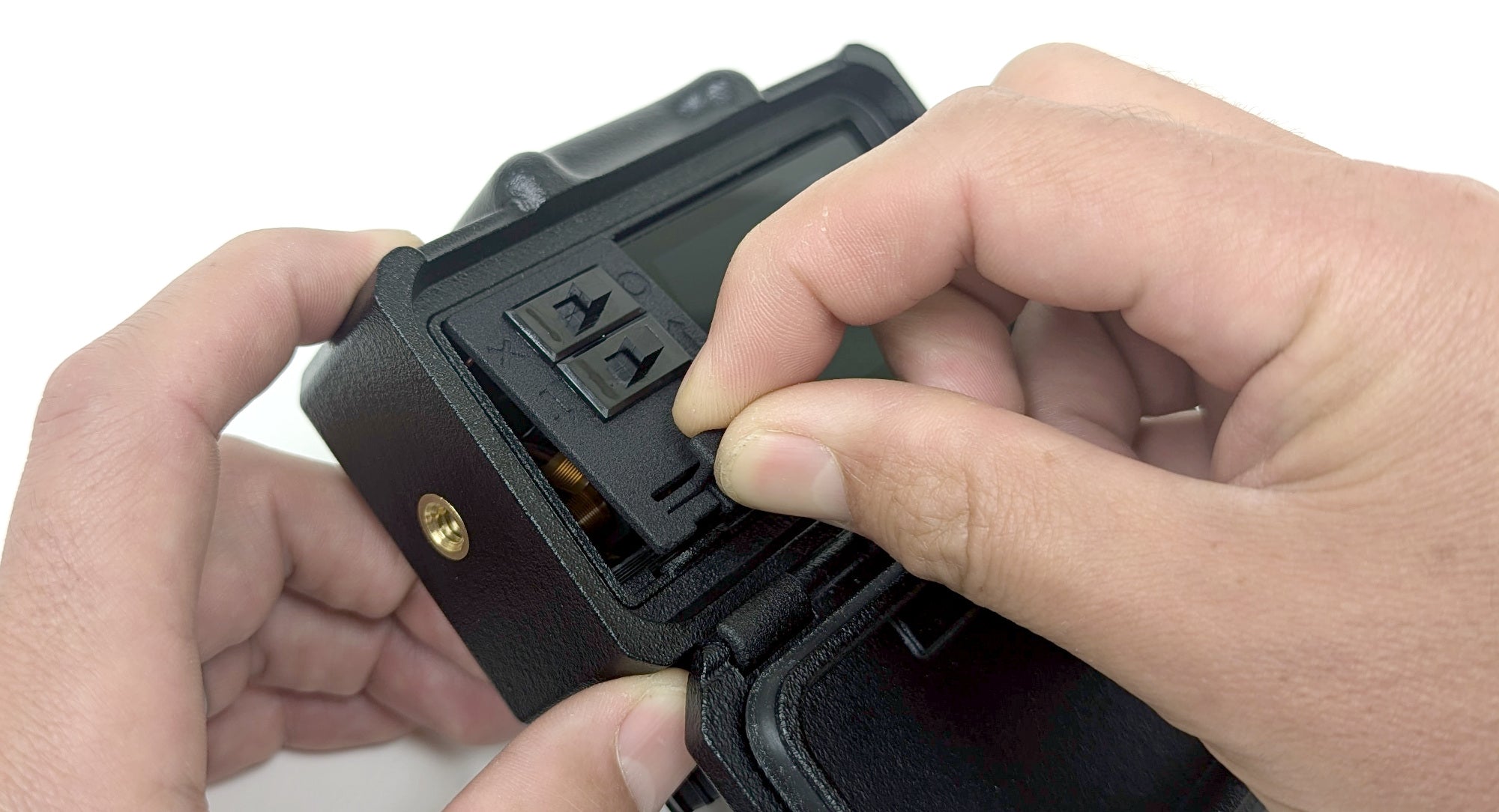

Push the cables inward and away from the camera to make room for the Switch Door. Once the cables are out of the way reinstall the Switch Door by holding the tab until it is seated correctly. You may need to wiggle the tab on the Switch Door until it clicks into place.

The Survey3 camera is now installed into the PRO housing:

Test all functions to make sure everything is working correctly.
