One Trigger, Six Sensors

This harness ties all six camera modules of a LATTICE L6 or L6V array to a single trigger line, so every sensor exposes at the same instant — less than 100μs of offset between the first and last module. Combined with the global shutter on each module, that keeps every band pixel-registered even when the array is moving.

One is included with every assembled L6 and L6V array. Order here as a spare, as a replacement, or for an array you are building up yourself from a bare L6 or L6V frame.

What's Included

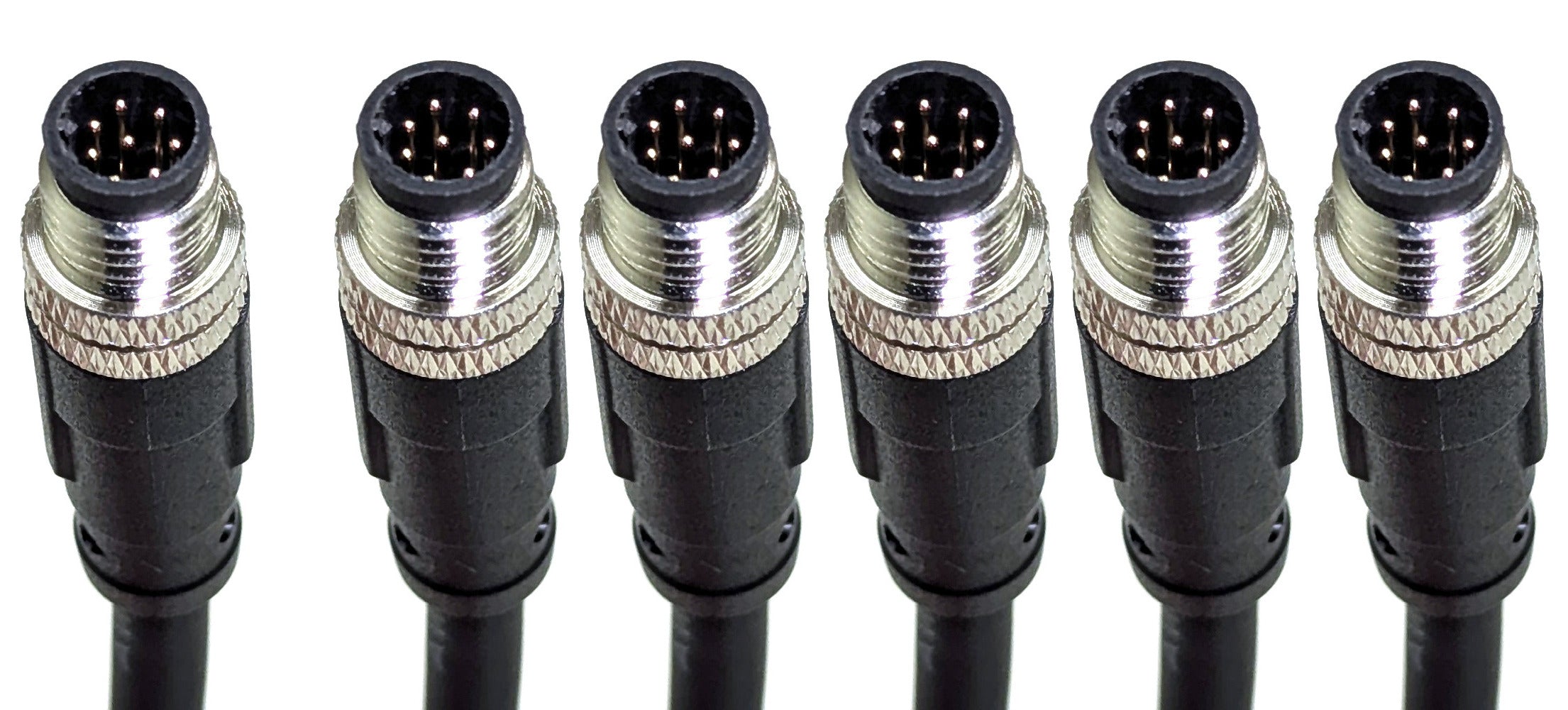

One harness with six waterproof M8 legs, one per camera. Each leg mates with the M8 trigger port on the rear of a LATTICE M3C or M3M module. The common end takes your trigger source — a flight controller, PLC, wheel or belt encoder, or another LATTICE module acting as master.

Legs are sized for the six-module frame and fit both the horizontal L6 and the vertical L6V layout.

Ethernet Is Separate

This harness carries trigger only. Each module still needs its own M12-to-RJ45 Ethernet cable, which delivers data, camera control, and PoE power over a single run — browse the LATTICE accessories collection.
