Magpy is a compact fixed wing drone that is super simple to use. Quickly plan your survey on the included Mission Control application and throw Magpy to start the mission. Magpy will cover 70-100 acres per battery (400ft / 120m AGL) and then land autonomously where you instructed it to. The Survey3 camera on-board will be automatically triggered and the images will be geo-tagged from the accurate M8N GPS receiver. Thanks to its SD card extender you can easily swap SD cards along with Magpy's battery between flights.

*Please Note: If a Survey3 camera is purchased separately from this Magpy package the camera will not come installed in Magpy. Survey3 cameras purchased with Magpy package do not come with separate GPS receiver or camera battery.

Main Drone Features:

30 minute flight time, 70-100 acre coverage (400ft/120m AGL) depending on wind
Survey3 camera automatically triggered and images geotagged during flight
Easily pull camera's SD card and load into MAPIR Camera Control (free) for reflectance calibration or directly into stitching application of your choice
Simple to use Mission Control autonomous flight application runs on any Android device
No controller necessary, fully autonomous take-off and landing
Easily swap SD card and battery, gets you flying again quickly
Highly accurate M8N GPS for flight navigation and camera geo-tags
Integrated air speed sensor provides more efficient flights
High quality metal-gear servos and ESC+motor, reduces twitching
Strapping tape re-enforces easy to repair EPP foam fuselage
Replacement wings and propellers available
Small shipping box allows for lower worldwide shipping costs
Perfect for training, education and service customers

[Included]

1 x Magpy Plane

1 x Flight Battery

1 x AC Battery Charger

2 x Propellers

1 x Propeller Wrench

1 x License for Mission Control application

[Specifications]

Overall Flight Time	30 minutes (Normal flight, 15% remaining battery level)
Dimensions	34 x 23 x 5.5 in (86.4 x 58.4 x 14 cm) (Width x Length x Height)
Wing Span	34 in (86.4 cm)
Flight Weight	580g (1.28lbs)
Cruise Speed	29mph (13m/s)
Cruise Height (Typical)	400ft (120m) AGL
Camera Ground Sample Distance (GSD)	Survey3W = 2.2in/px (5.5cm/px), Survey3N = 0.9in/px (2.3cm/px)
Survey Flight Overlap (Minimum Recommended)	70% Front / 70% Side
Survey Area Coverage	70-100 acres (Depends on Amount of Wind)
Satellite Positioning System	BeiDou, Galileo, GLONASS, GPS / QZSS (M8N)
Flight Battery	1600mAh 3S 30C Lipo, 128g, 109 x 20 x 35mm (Length x Width x Height)

[Mission Planning Application]

Mission Control Application Features:

Quickly plan your mission by adjusting the survey bounding box, selecting your landing location and approach angle direction.
Terrain Follow (Optional): automatically adjusts flight height based on local terrain data (internet required during mission planning)
Adjust the flight hatch angle to increase efficiency when flying in wind
Automatically continue the autonomous mission if the plane loses communication with your phone/tablet
Captured photo projection during mission shows area coverage

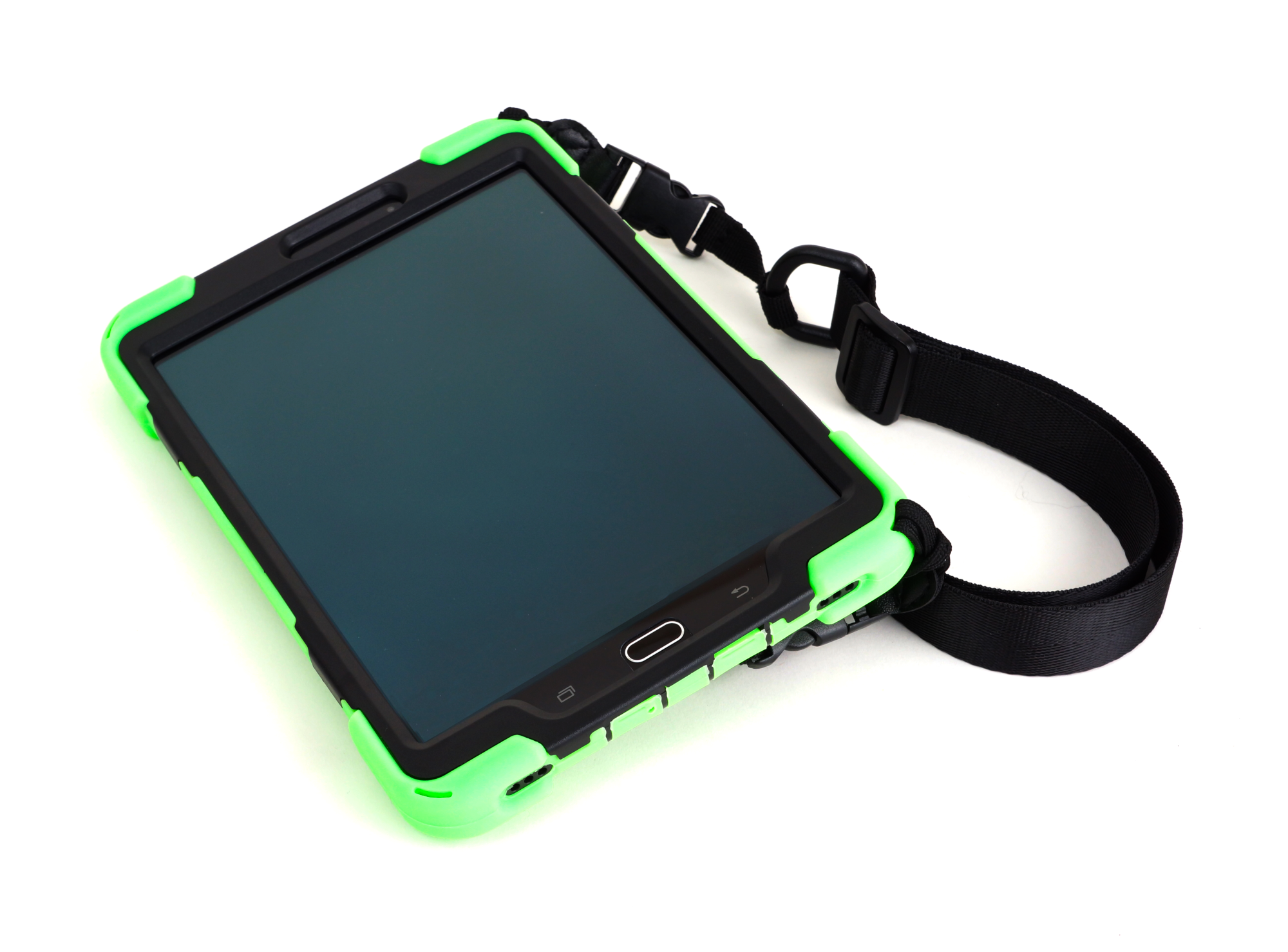

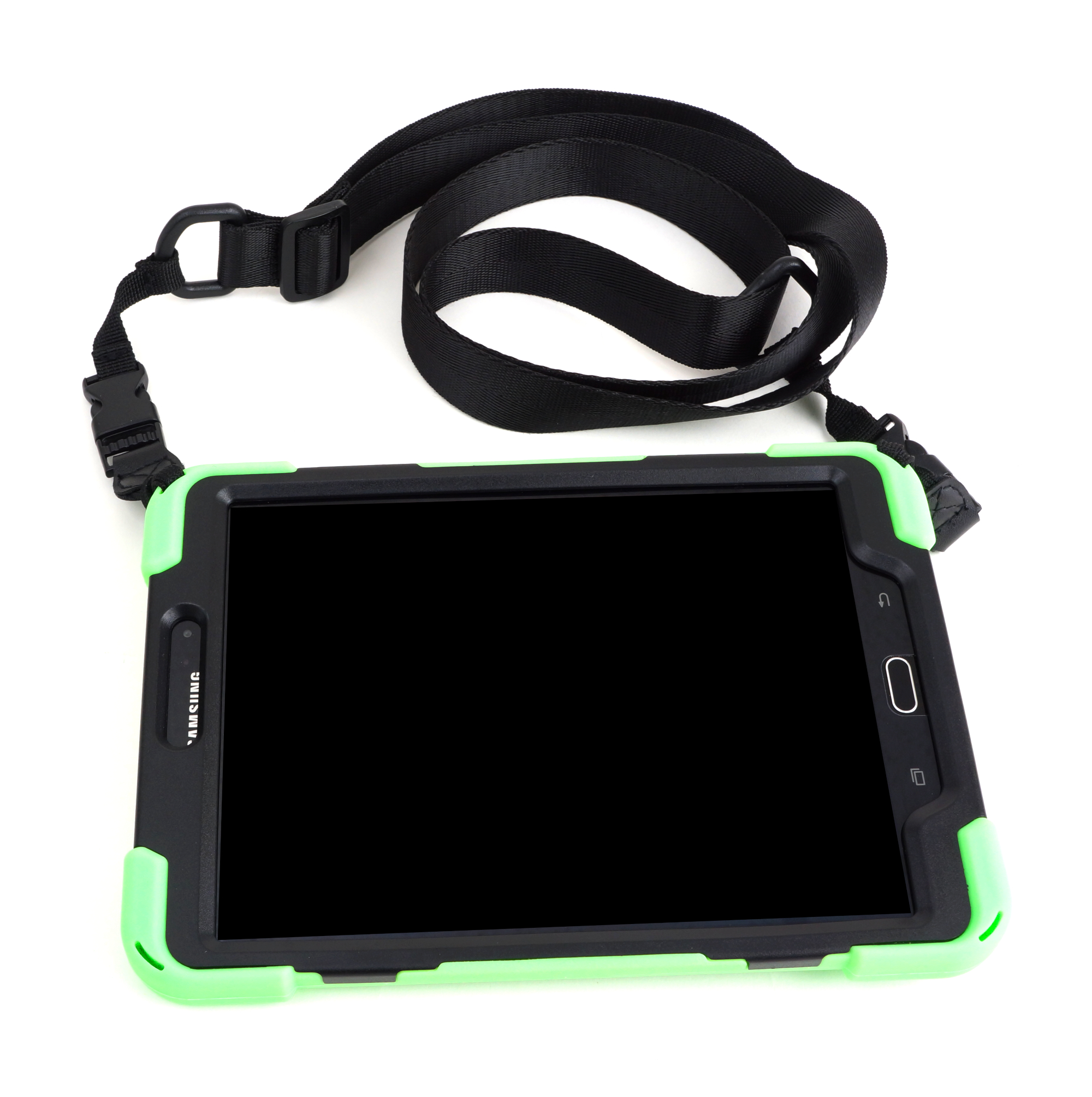

Android Tablet 8 inch + Case
